13.2. Description

13.2.1. Specyfication of searching criterions

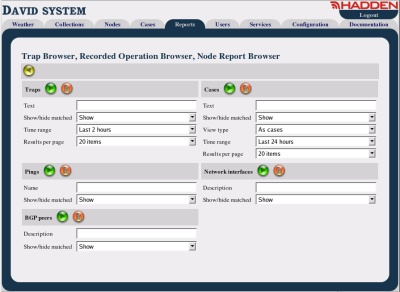

13.2.1.1. Default view of the application

Trap Browser is accesible through Reports tab. It is Traps group of the tab. If you give searching criterions in Traps group, you will get a list of registered notifications.

13.2.1.2. Traps group

Fields included in the group and their meaning are presented in the table below.

Table 13.1. Trap Browser - a description of Traps group fields

Field	Description
Source IP	A device IP address - of a sender of a message.
Agent IP	IP address of an agent - a sender of a message.
SNMP community	SNMP community of a message.
Generic	Generic type of a message (only in SNMPv1).
Specyfic	A specific number of a message (only in SNMPv1).
OID	Identifier (OID) of a message in MIB (only in SNMPv2).
Enterprise	Identifier of enterprise in MIB.
Text	A human readable meaning of a message.
ID	A text identyfier of a message readable for a human.
Community	A message community, that is given during processing of the message (the communities are separated by ':' sign).
Source device	A device which is a sender's message.
Show/hide matched	The field means if meassages, fulfilling searching criterions, are presented, or not.
Time range	Specification of time range through choosing a period of time (until now).
Date and period	Specification of time range through choosing a given date and time with a descripted period of time (i.e.: 1 day, 2 days, 1 week etc.).
Results per page	It describes a maximum number of entries, that will be showed at once.
Each bar occupies	It shows how much time a single bar on the graph of appearing of SNMP Traps in time will be occupy.
Graph's width	A graph width.
Graph's height	A graph height.

13.2.2. Generated report

The report view is divided on two parts. The top part includes a list of entries, and bottom part shows bar chart, that is a visualisation of appearing distribution of selected messages in time.

The list is divided in columns meaning a receiving time of a message, source device of a message, a message and an identifier of a message (OID). Source column instead of IP address of sender's message can include a link to Node Browser, that shows the sender's message. Message and OID columns includes links allowing you to go to a detailed view of a given entry. Over the row with a column description, the buttons, allowing to borwse a whole list of selected SNMP Trap messages, are placed.
